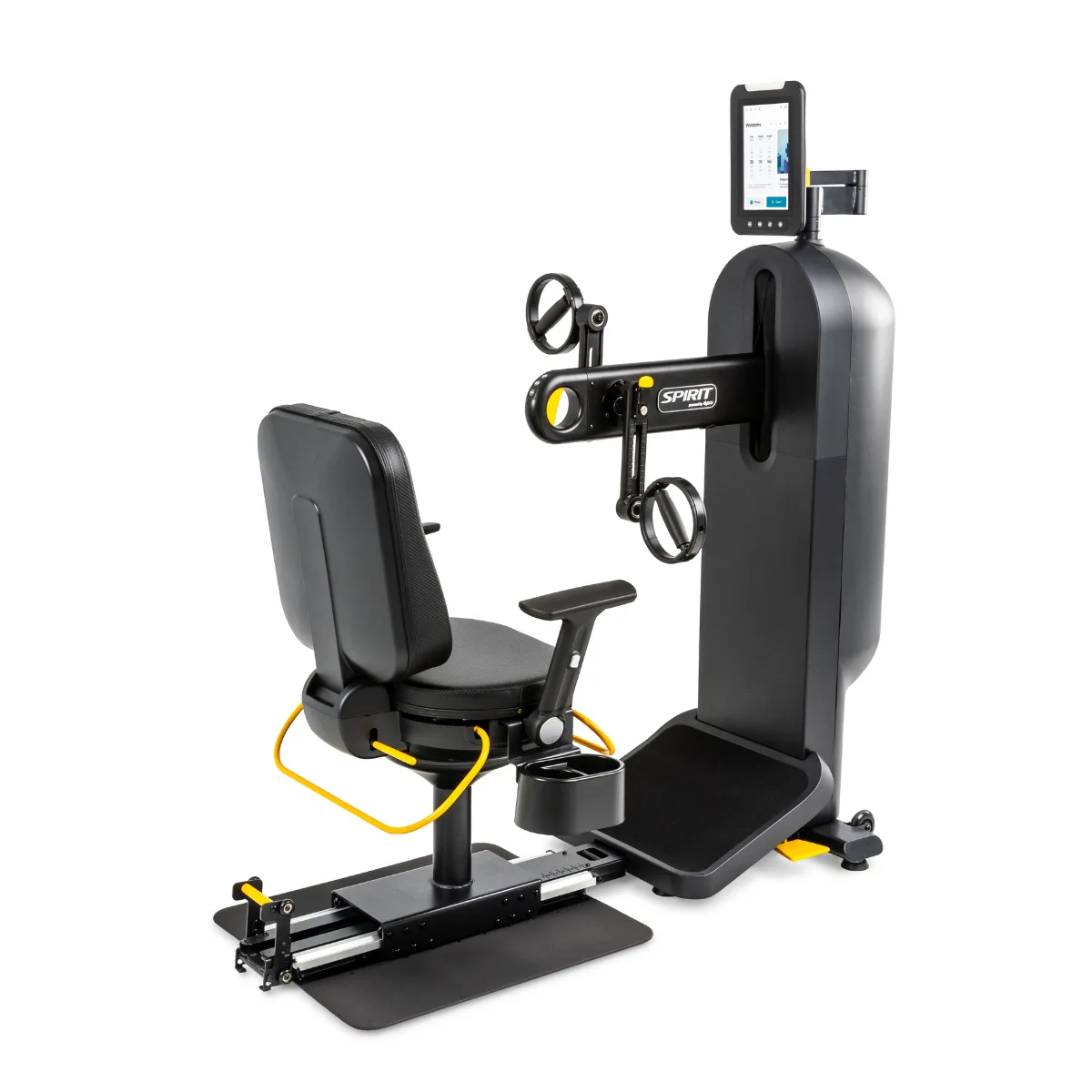

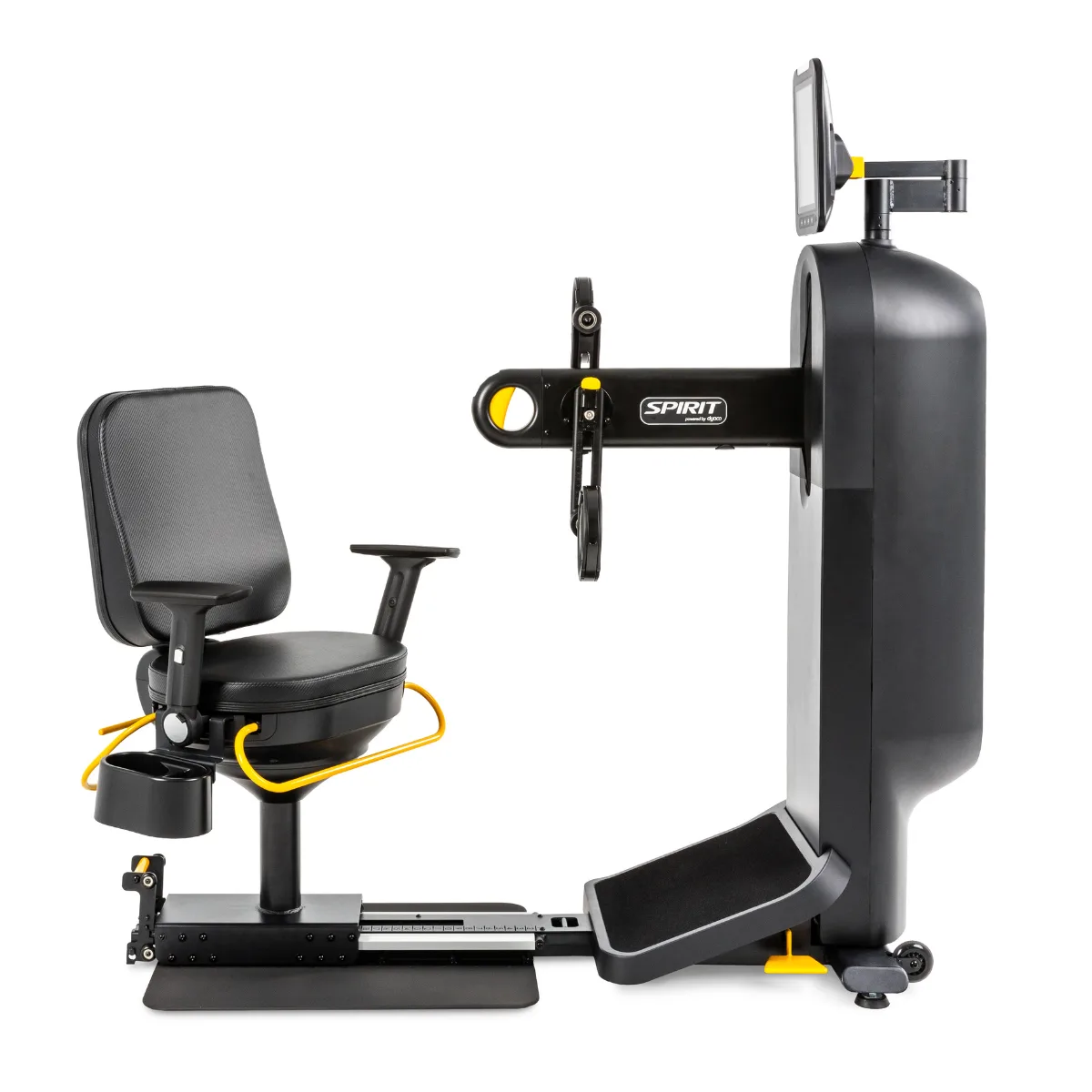

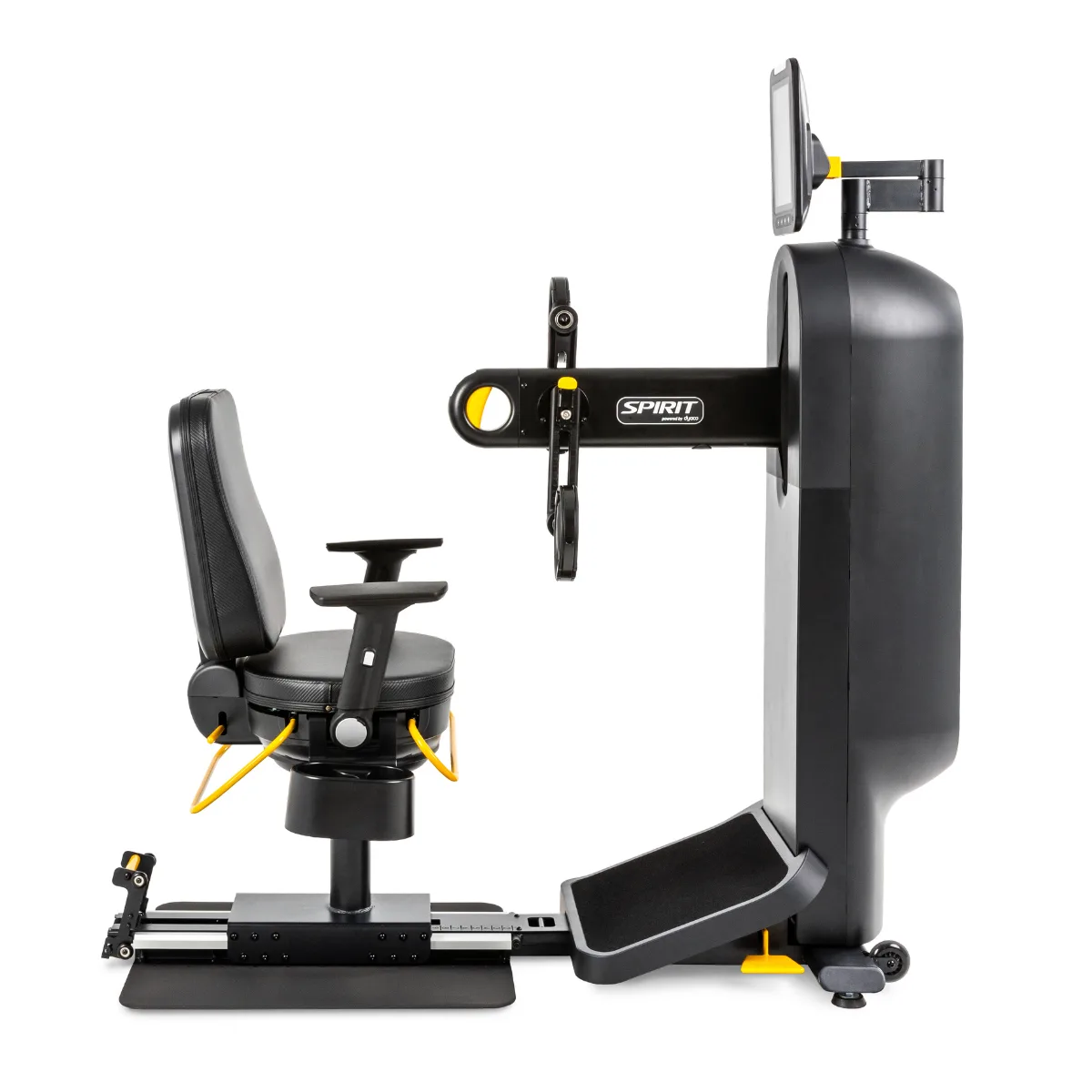

8.5UE Upper Body Ergometer
The 8.5UE upper body ergometer offers a very low starting resistance to accommodate various ranges of motion capabilities, ensuring gentle and low-impact movements for the upper limbs, arms, and shoulders. Additionally, the adjustable crank length can be tailored to meet each patient's specific range of motion requirements. The 8.5UE is thoughtfully designed with the user in mind. It is feature-rich and ADA-compliant. With a fully removable seat, it facilitates seamless direct wheelchair access. Users can choose from three distinct workload options, including Constant Power, Isokinetic, and Constant Resistance, making it adaptable to a wide range of rehabilitation needs. Moreover, the system boasts a suite of neurological programs and features tailored to rehabilitation. The 10-inch touchscreen display is equipped with multi-connectivity protocols and provides access to cloud analytics, making the 8.5UE an ideal tool for both therapists and patients, promoting enhanced therapy and rehabilitation outcomes. MULTI-FUNCTION HANDLE A convenient multi-function handle is in close patient proximity and includes remote quick keys that allow users to easily operate the console. A tower height adjustment lever allows users to adjust the angle of the hand grips for proper positioning. DIRECT WHEELCHAIR ACCESS Direct wheelchair access provides seamless entry for users with mobility challenges. This inclusive design eliminates barriers; no need to transition from chair to exercise equipment. Simply remove the 360-degree swiveling seat to start your next session. Foster independence and ensure that everyone, regardless of physical ability, can participate in therapeutic workouts. ROTATING HAND GRIPS Large, round handles offer flexible placement, allowing users to find the most comfortable and ergonomic grip. With rotating hand grips, users can adapt their hand position to reduce strain and enhance control during workouts. SYMMETRY DATA The advanced Symmetry program is designed to assess and quantify the balance of power between the left and right arms throughout each rotation, delivering both a graphic and numeric representation of arm power symmetry. MAGNETIC RESISTANCE SYSTEM A state-of-the-art magnetic resistance system offers a low start-up threshold, delivering a wide range of smooth, comfortable, and highly precise resistance levels.
Key Features
- ADA-compliant with direct wheelchair access
- Adjustable crank to fit any range of motion
- 50 levels of forward and reverse resistance
- Large round rotating hand grips
- Choose from a variety of preset programs or create a custom program
Ideal For
Request Commercial Pricing
Volume discounts available for multi-unit facility installations.
REQUEST A QUOTETechnical Specifications
- Performance
- Power: 120V/15AMP Cord/Outlet Removable Seat for Direct Wheelchair Access Resistance: 50 Levels
- Frame
- Commercial-Grade Steel Frame Durable Powder-Coat Paint 360-degree Swivel High-Density Foam Seat Seat Type: High-Density Foam Seat Adjustments: Fore/Aft/Seat Back Angle Round Articulating Handles
- Console
- Display Type: Touchscreen Tablet Display Size: 10.1" Programs: Manual, Timer, Hill, Plateau, HIIT, Facility, Heart Rate Target, Calories Target, METs Target, Wingate Test, Steep Ramp Test, Conconi Test, Power Distribution Heart Rate Receiver: Bluetooth, ANT+ USB Port: Type B for Data Transfer Cardiac Stress Test Connection
- Convenience
- Wireless Heart Rate Monitoring (*Heart Rate Devices Not Included) Dual Cup Holders Transportation Wheels
- Dimensions
- Set-Up Dimension: 67.2” L x 29.9” W x 65.9” H Box Dimension: Carton A: 36.3" L x 27.2" W x 56.4" H Carton B: 38.6" L x 29.1" W x 25.2" H Item Weight: 328.5 lb Box Weight: 369.2 lb Recommended User Height: 4’10” - 6’6” Max User Weight Capacity: 440 lb
- Warranty
- US WARRANTY 5 Years Parts 1 Year Labor *Prisons and correctional facilities are excluded from warranty coverage.
Frequently Asked Questions
- What warranty does the 8.5UE Upper Body Ergometer come with?
- The 8.5UE Upper Body Ergometer is backed by a — frame warranty, 5 YR parts warranty, and 1 YR labor warranty — commercial-grade coverage from Spirit Fitness.
- Who is the 8.5UE Upper Body Ergometer best suited for?
- The 8.5UE Upper Body Ergometer is ideal for Rehabilitation Clinics, Physical Therapy, Hospitals and Senior Living. It is built to commercial specifications and engineered for continuous, high-demand use.
- Is the 8.5UE Upper Body Ergometer available for commercial purchase?
- Yes. Elite Exercise Equipment supplies the 8.5UE Upper Body Ergometer to commercial facilities across the United States. Contact us for volume pricing, lead times, delivery, and professional installation options.
