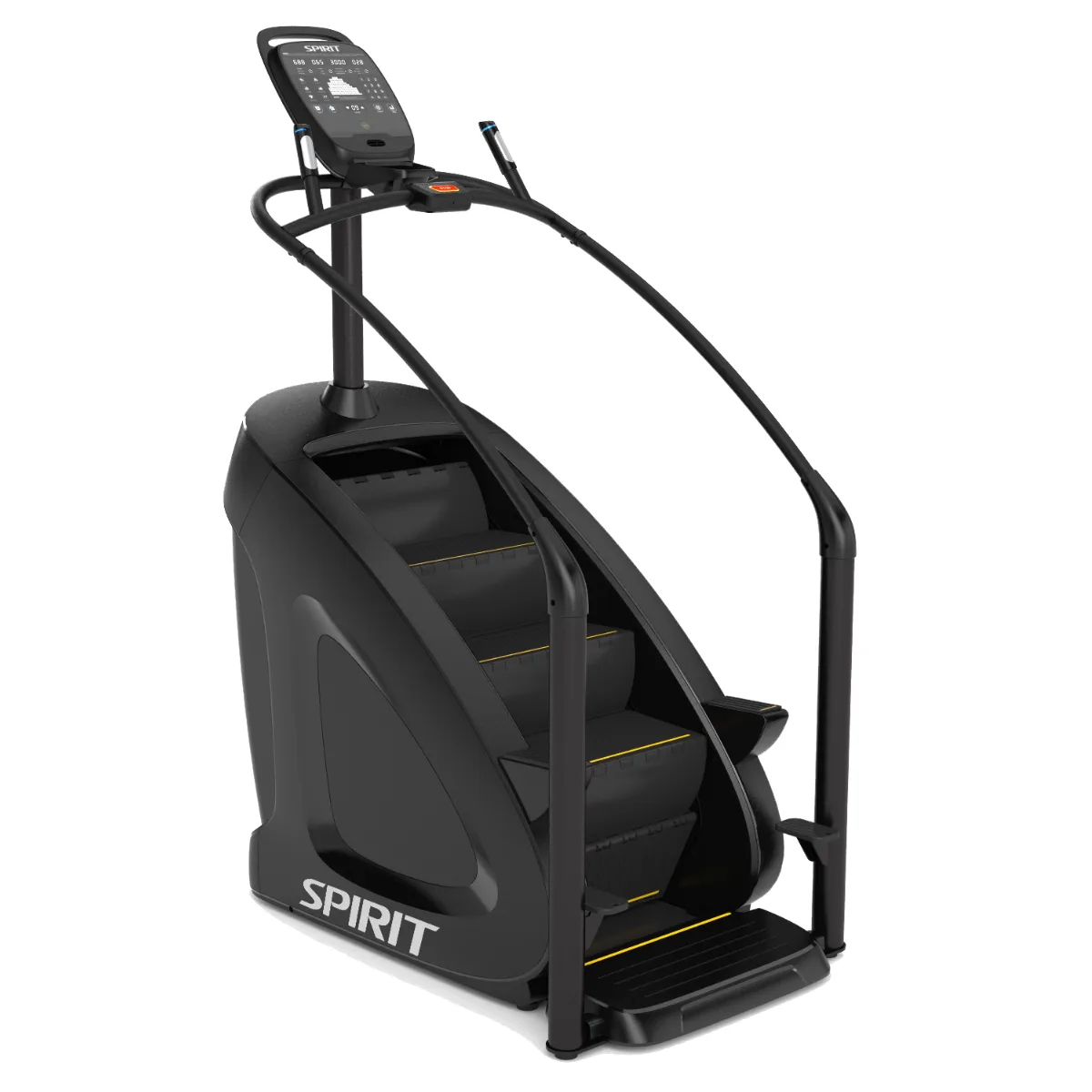

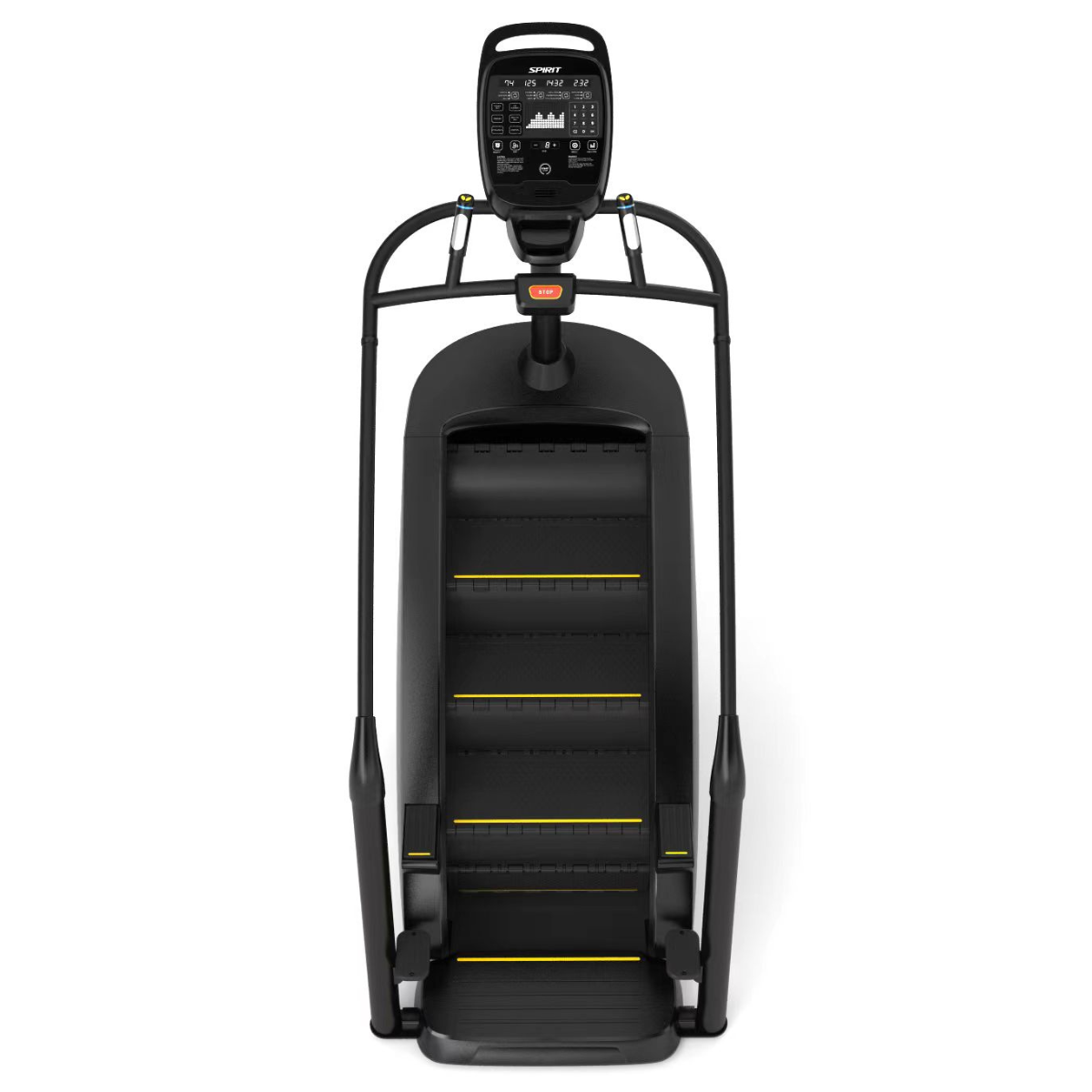

CSC900 Stairclimber
The Spirit Fitness CSC900 StairClimber is a great way to get a challenging yet rewarding workout. A sturdy industrial drive system ensures years of reliable, trouble-free service. The drive method, from steps to brake, is chain connected to steps driving an electromagnetic induction brake by poly-v belt transmission.
Key Features
- Large step surface area compared to other commercial machines
- 20 levels of resistance and up to 160 steps per minute
- Durable steel frame with ABS-lined steps
- Built-in 2-speed cooling fan and accessory holder
- Hand pulse grips, resistance controls, and handlebar controls
Ideal For
Request Commercial Pricing
Volume discounts available for multi-unit facility installations.
REQUEST A QUOTETechnical Specifications
- Motor
- Alternator 12V/37A
- Power
- 120V/15A Cord/Outlet
- Drive System
- Chain and Poly-V Belt with Electromagnetic Induction Brake
- Performance
- 25 - 160 Steps per Minute, 0 - 20 Levels of Magnetic Resistance
- Step Area
- 21.5” L x 11” W x 8” H
- Ground to First Step Height
- 12.2”
- Platform to First Step Height
- 9"
- Between Step Height
- 8”
- Step Depth
- 11”
- Frame
- Commercial-Grade Steel Frame with Plastic Coverings, 8 Total Steps with ABS Lining, 10 ft Minimum Ceiling Height Recommended, Steel Handrails with Durable Grip Coating

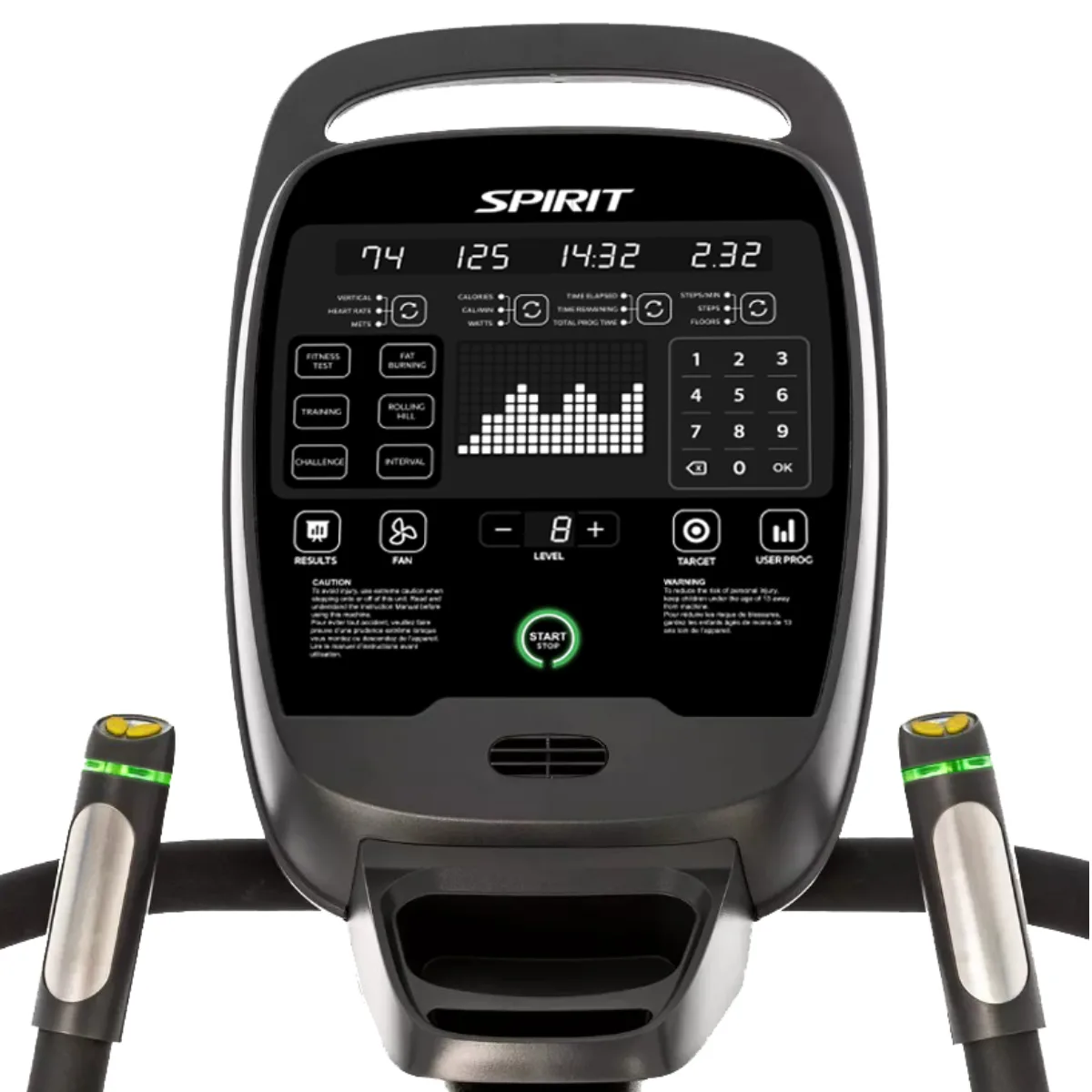

- Display
- 6 LED Windows
- Display Size
- 3.75” diagonal
- Feedback
- Program, Level, Vertical Distance, Heart Rate, METS, Calories, Calories per Minute, Watts, Time , Steps per Minute, Steps, Floors
- Programs
- Warm Up, Fat Burning, Training, Rolling Hills, Challenge, Interval, Target (3 options), User Program (User Custom Designed Program)
- Convenience
- Handlebar Controls, Hand Pulse Sensors, Bluetooth Heart Rate Receiver (Chest Strap Sold Separately), Emergency Stop, Reading/Accessory Rack, Cooling Fan, Transportation Wheels and Levelers
- Set-Up Dimension
- 64" L x 38" W x 83" H
- Box Dimension
- 64" L x 56" W x 44" H
- Item Weight
- 520 lb
- Box Weight
- 720 lb
- Max User Weight Capacity
- 400 lb
- Dimensions
- Preassembled Width Without Handrails: 32.7"
Frequently Asked Questions
- What warranty does the CSC900 Stairclimber come with?
- The CSC900 Stairclimber is backed by a 10 YR frame warranty, 3 YR parts warranty, and 3 YR labor warranty — commercial-grade coverage from Spirit Fitness.
- Who is the CSC900 Stairclimber best suited for?
- The CSC900 Stairclimber is ideal for Health Clubs, Hotels, Universities and Corporate Wellness. It is built to commercial specifications and engineered for continuous, high-demand use.
- Is the CSC900 Stairclimber available for commercial purchase?
- Yes. Elite Exercise Equipment supplies the CSC900 Stairclimber to commercial facilities across the United States. Contact us for volume pricing, lead times, delivery, and professional installation options.
